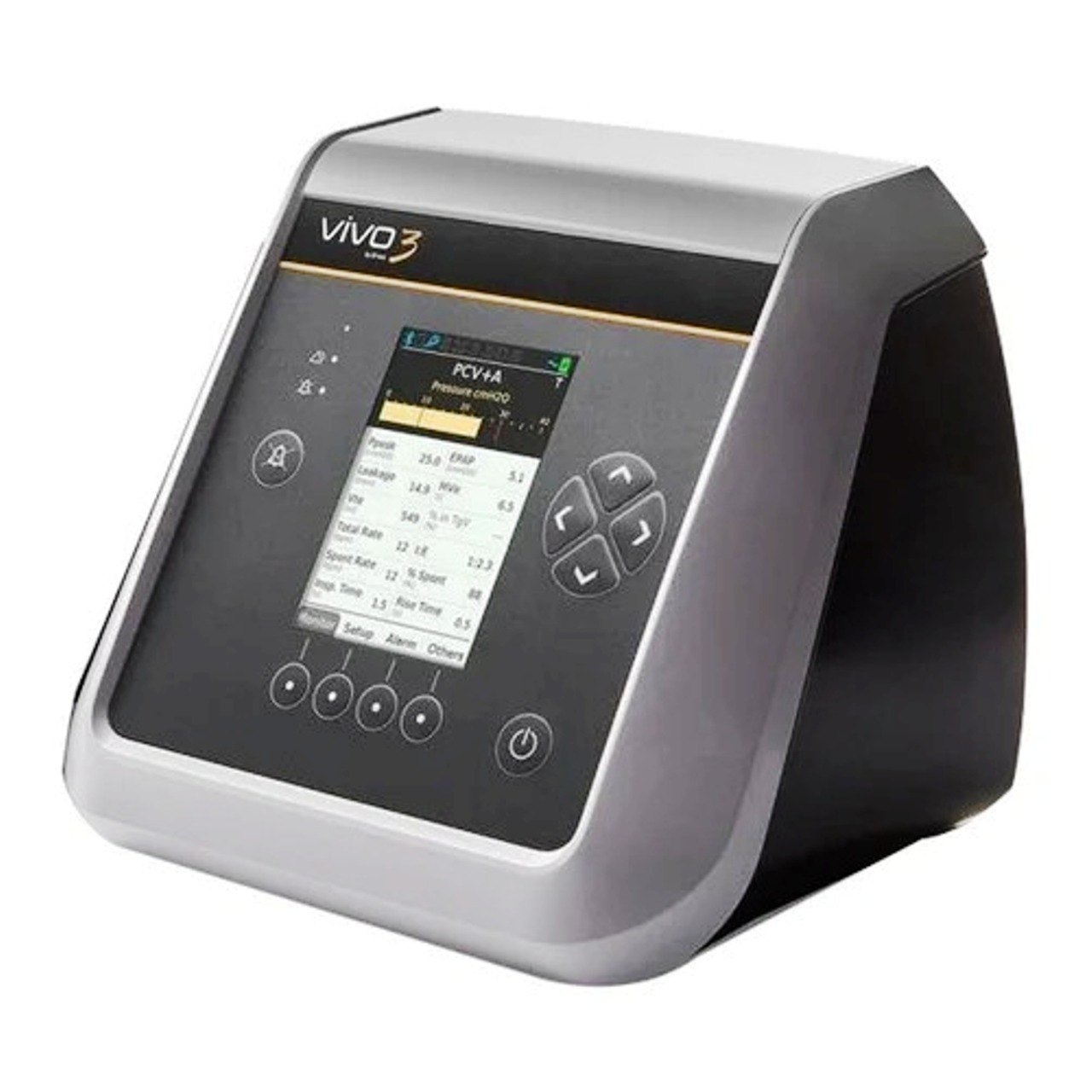

Breas Vivo 3 NIV Bipap Machine (With Battery)
₹400000.00₹299000.00
The Breas Vivo 3 is an innovative bi-level ventilator that offers advanced respiratory support tailored to meet the needs of non-dependent patients experiencing chronic breathing insufficiency. Designed for both non-invasive and invasive use, it prioritizes patient comfort while delivering effective therapy. Its intuitive interface makes it user-friendly, ensuring that healthcare providers can easily navigate its features. With a wide range of modes and extensive monitoring capabilities, the Breas Vivo 3 provides the flexibility needed to adjust treatment plans based on individual patient requirements. This new-generation ventilator represents a significant advancement in respiratory care, enhancing the quality of life for those with breathing difficulties.
Breas Vivo 3 is a new-generation bi-level ventilator designed for personalized and comfortable respiratory support – both non-invasive and invasive – for non-dependent patients with chronic breathing insufficiency. The intuitive interface ensures ease of use. A comprehensive set of modes and extensive monitoring capabilities allow for great flexibility, making the ventilator a perfect choice for a variety of patients.
Features
COMPACT
One Platform-Three Models
Lightweight and Compact
Integrated Humidifier
Internal Battery 3h
ADAPTABLE
Wide range of Modes
Adult and paediatric (>10kg)
Intuitive Interface
Extensive therapy data
Suitable for use in hospital and home
Closer monitoring with Breas accessory box
CONNECTED
Making Connected Care more Insightful
EveryWare – Secure cloud-based remote monitoring*
PC Software – Desktop-based with Live Viewer
Breas Vivo 3 Technical Specifications
Settings / Performance
Ventilation Modes
S, ST, T, PSV, PCV+A , CPAP
Adult/Pediatric
>10kg
Profiles
3 settable profiles
IPAP
4 – 40 cmH2O
EPAP
2 – 20 cm H2O
Breath Rate/Back-up Rate
0-40 bpm
Inspiratory Time
0.3 – 3s
Rise Time
1 – 9
Inspiratory Trigger
1 – 9
Expiratory Trigger
1 – 9
Minimum Inspiratory Time
Off, 0.3 – 3 s
Maximum Inspiratory Time
Off 0.3 – 3 s
Target Volume
100 – 1500 ml
Auto-EPAP
On/Off, Pressure Limit: Max EPAP +2 cmH2O – 40 cmH2O, PS 2-38cm Min/Max EPAP: 2 – 20 cmH2O, EPAP Step: 0.5 – 2 cmH2O, Relax Time: 2-12 mins/Off
HFNT
4-60L/min
Ramp (Up/Down)
Off 10-60mins
Humidifier Level
1-5
Heated Circuit
Off, 1-5
Patient Circuit
15mm, 22mm, Custom
O2 Bleed in (Device)
0-30L/min
Monitoring
Displayed data
Ppeak, EPAP, Leakage, MV, Vte % in TgV, Total Rate I:E, Spont Rate, % spont, Inspiratory time, Rise time, SpO2, Pulse, Rate
Power Supplies
Mains supply
100 to 240 V AC
External DC
24 V DC
Internal battery
3 hours
Alarms
Alarms
High Pressure, Low Pressure, High Breath Rate, Low Breath Rate High MV, Low MV, Rebreathing Apnea, Disconnection, High SpO2, Low SpO2, High Pulse Rate, Low Pulse Rate, Low Last Power Source
Dimensions
W x H x D
166 x 185 x 200 mm
Weight
1.8 kg
Noise level (at 10 cmH2O constant pressure)
Less than 28 dB(A)
Connectivity and Software
Built-in connectivity
USB
Compatible Software
PC Software and is prepared for EveryWare Remote Monitoring*
Plug-and-Play accessories
SpO2, Nurse Call, Remote Alarm, Accessories Box
Other
Humidification
Integrable water chamber
Circuits
Cleanable & Disposable leakage circuits with/without heated wires
Confirm Stop
On, Off
Compliance Data (on Screen)
Min Daily Usage Off, 1-24hrs, Total Usage Hours, Total Days, Days with Usage Average Usage, Days Compliant, AHI
