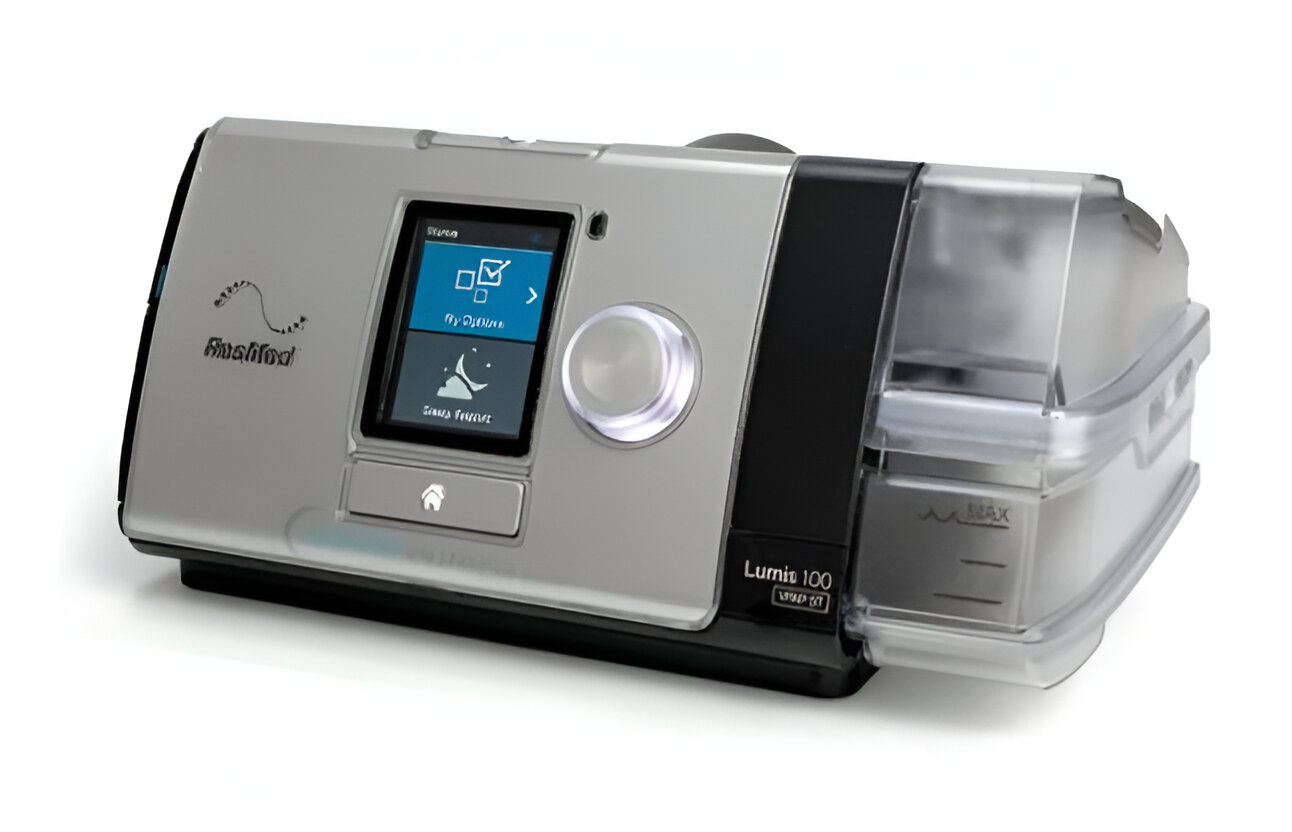

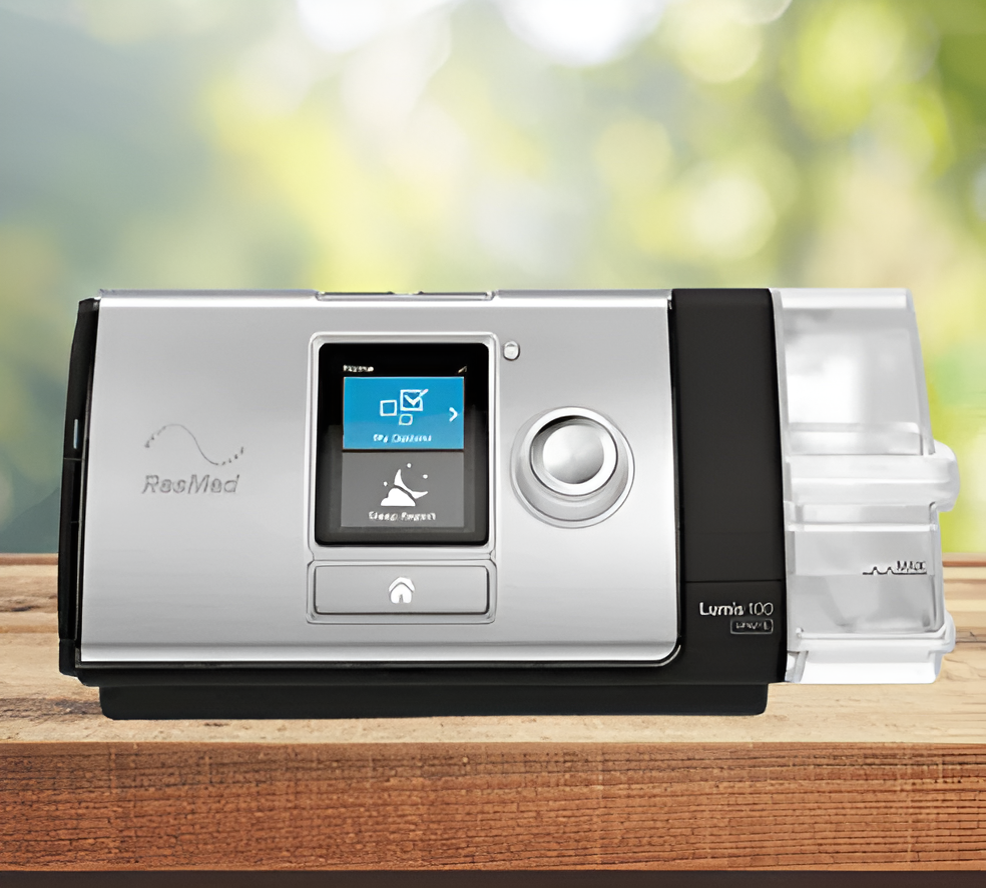

Resmed Lumis 100 VPAP ST Bipap Machine
₹112000.00₹48500.00
The ResMed Lumis 100 VPAP ST is an advanced noninvasive ventilator specifically designed for patients with respiratory insufficiency who require support for spontaneous breathing. This user-friendly device simplifies setup and operation, making it accessible for both healthcare providers and patients alike. As the latest model in the ResMed BiPAP series following the AirCurve 10 ST, the Lumis 100 integrates cutting-edge technology to enhance ventilation efficiency and comfort. With its robust features, this ventilator not only improves the quality of care for individuals with breathing difficulties but also promotes better patient outcomes by ensuring consistent and effective respiratory support. Whether used in a hospital setting or at home, the Lumis 100 VPAP ST represents a notable advancement in respiratory therapy.
Resmed Lumis 100 VPAP ST is a noninvasive ventilator designed for spontaneous breathing, s with respiratory insufficiency. The ventilator is easy to set up and use, This is the Latest Model Of Resmed Bipap after Aircurve 10 ST
Resmed Lumis 100 VPAP ST Bipap Features:
Vsync provides excellent patient-ventilator synchrony, even in a significant leak.
TiControl™ lets you set min and max limits on either side of the patient’s ideal inspiratory time to encourage spontaneous breath.
Trigger and cycle help you optimize settings according to the patient’s condition, using five trigger and cycle sensitivity levels.
QuickNav for low-touch therapy adjustment. By simply double-clicking the home button on the device, you can toggle between the Settings and Monitoring screens to change and check settings quickly and easily.
Climate Control Auto for automatic humidification. When used with a HumidAir™ heated humidifier and ClimateLineAir™ heated tube, Lumis automatically delivers humidification – no settings to change or complicated menus to navigate.
Ramp and Ramp Down for extra comfort. Lumis offers both Ramp and Ramp Down features to help patients ease into and out of each therapy session.
ResScan software for advanced clinical insights. ResScan enables you to download your patients’ therapy data, change ventilator settings, and gain insight into their therapy progress across several metrics (including AHI, leak, and pressure). High-resolution data (at 25 Hz) is also available for breath-by-breath analysis and even greater insight. Rescan Availability is subject to availability in the region, don’t hesitate to get in touch with support for more on Rescan
Technical Specifications
Brand | Resmed |
Model Name/Number | Lumis 100 Vpap ST |
Ventilation Modes | CPAP, S, ST, T, PAC |
Operating Pressure Range | 3-25 cm H2O(2-25 hPa) S,ST,T mode 4-20 cm H2O(4-20hPa) in CPAP mode |
Sound Pressure Level | 26.6 dBA with uncertainty of 2 dBA as measured according to(CPAP mode) |
90 W Power Supply Unit | Input range:100/240 V,50/60 Hz,57VA |
Operating Temperature | +5 degrees C o +35 degrees C |
Storage and Transport Temperature | -20 degrees C to +60 degrees C |
Housing Construction | Flame retardant engineering thermoplastic |
Supplemental Oxygen | Recommended maximum flow: 15L/min |
Standard Air Filter | Polyester non-woven fiber |
Tubing | Climateline |
Air Outlet | 22 mm air outlet complies |
